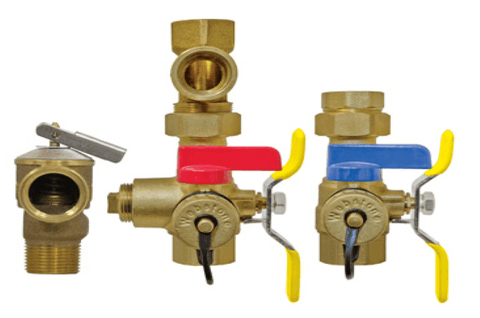

(Nibco Part#: H-55443WPR) H-x544W Series - The Isolator E-X-P E3 Tankless Water Heater Service Valve Kit
$171.22
Best Price Guarantee - Email Us A Better Published Price and We'll Beat It
2% Off All Online Orders Use Code: 2%OFF
Fast Online Checkout - No Account Required
Material #: H-55443WPR
Brand: Nibco
UPC Code #:
Product Specifications
| Full Port Forged Brass Ball Valve - Cold Water | H-55443WPR_Cold |
| Full Port Forged Brass Ball Valve - Hot Water | H-55443WPR_Hot |
| Industry Standards/Certifications | NSF/ANSI 61, NSF/ANSI 372 |
| Type | Isolator |
| Valve Size | 3/4 |
| Connection Type | FIP Union x SWT |
| Maximum Operating Pressure Note | 500 psi |
| Valve Operator | Wing Lever Handle |
| Weight | 4.377 lb |
| Body Material | Brass |
| Seat Material | PTFE |
| Ball Material | Brass HCP |
| Seal Material | PTFE |
| Handle Nut Material | Stainless Steel |
| Wing Style "T" Handle Material | Steel CP |
| Handle Jacket Material | Vinyl |
| Packing Gland Material | Brass |
| Stem Seal Material | Brass |
| End Cap Material | Brass |
| Union Nut Material | Brass |
| Retaining Ring Material | Stainless Steel |
| Union Fitting Material | Brass |
| Washer Material | EPDM |
| Drain Valve Handle Material | Enamel Coated Aluminum |
| Drain Valve Handle Screw Material | Brass |
| Cap & Strap Material | Brass w/ EPDM Washer & Strap |
| Relocation Adaptor (Hot) Material | Brass |
| Inside Diameter (A) | 1 in |
| Length (B - Cold) | 4.25 in |
| Length (B - Hot) | 6.85 in |
| Height (C) | 2.5625 in |
| Handle Length (D) | 2.54 in |
| Width (E) | 2.50 in |
