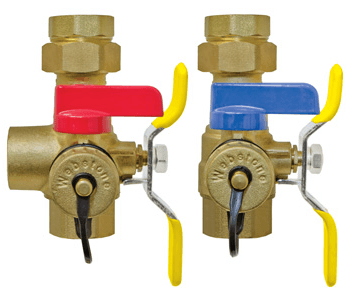

(Nibco Part#: H-44444) H-x444W Series - The Isolator E-X-P E2 Tankless Water Heater Service Valve Kit
$194.98
Payment Forms We Accept: Visa, Mastercard, Discover, American Express
Material #: H-44444
Brand: Nibco
UPC Code #:
Product Specifications
| Full Port Forged Brass Ball Valve - Cold Water | H-44444_Cold |
| Full Port Forged Brass Ball Valve - Hot Water | H-44444_Hot |
| Industry Standards/Certifications | NSF/ANSI 61, NSF/ANSI 372 |
| Type | Isolator |
| Valve Size | 1 |
| Connection Type | FIP Union x FIP |
| Valve Operator | Wing Lever Handle |
| Weight | 5.28 lb |
| Maximum Operating Pressure Note | 500 psi |
| Body Material | Brass |
| Seat Material | PTFE |
| Ball Material | Brass HCP |
| Seal Material | PTFE |
| Handle Nut Material | Stainless Steel |
| Wing Style "T" Handle Material | Steel CP |
| Handle Jacket Material | Vinyl |
| Packing Gland Material | Brass |
| Stem Seal Material | Brass |
| End Cap Material | Brass |
| Union Nut Material | Brass |
| Retaining Ring Material | Stainless Steel |
| Union Fitting Material | Brass |
| Washer Material | EPDM |
| Drain Valve Handle Material | Enamel Coated Aluminum |
| Drain Valve Handle Screw Material | Brass |
| Cap & Strap Material | Brass w/ EPDM Washer & Strap |
| O-Ring Material | EPDM |
| Press O-Ring Material | EPDM |
| Grip Ring Retainer Material | Plastic |
| Grip Ring Material | Stainless Steel |
| Release Ring Retainer Material | Plastic |
| Release Ring Material | Plastic |
| Inside Diameter (A) | 1 in |
| Length (B) | 5.00 in |
| Height (C) | 2.38 in |
| Handle Length (D) | 2.54 in |
| Width (E) | 3.11 in |
